Audi 2.5 TFSi

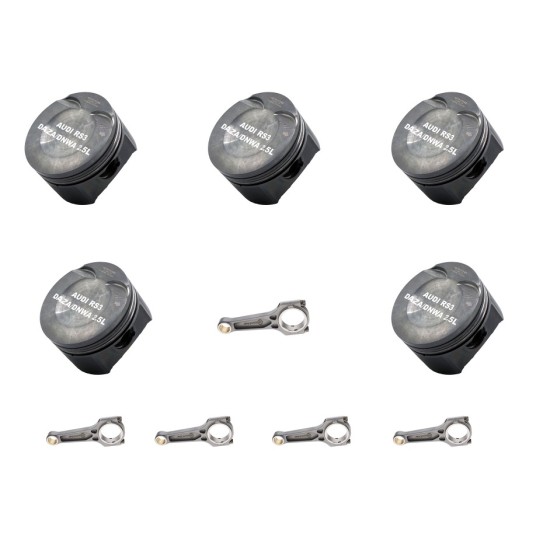

Name: Mahle Motorsport Forged Pistons & Conrods for Audi RS3 & TT RS 2.5 - DAZA & DNWA
Brand: Mahle Motorsport
SKU: 197915148 & VW5670-866
Price: 1886.40 GBP
Availability: InStock

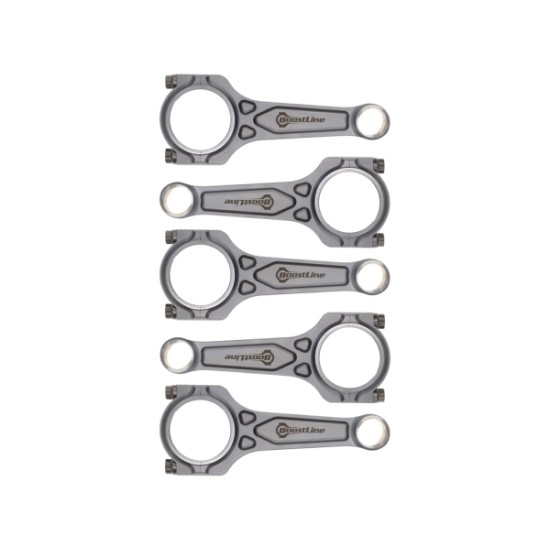

Mahle Motorsport Forged Pistons & Boostline Forged Conrods

Fits Models: RS3, TT RS
Engine Codes: DAZA, DNWA
Mahle Part Number: 197915148

OEM Part Numbers: 07K107065AB, 07K198401D, 07K198401E

Bore Size: 82.50 mm
Compression Height (CH): 29.6 mm
Stroke: 92.8 mm
Connecting Rod Length: 144 mm
Wrist Pin Diameter: 22 mm
Crown Volume: -5.0 cc
Piston Weight: 322 g
Compression Ratio (CR): 10.0:1
Piston Type: M142P

High-performance forged piston and rod set designed for Audi 2.5 TFSI DAZA and DNWA engines (RS3 & TTRS).
Developed by Mahle Motorsport and Boostline for maximum strength, reduced weight, and superior thermal stability.
Ideal for performance builds and racing applications, offering OEM-level precision with motorsport durability.

Please see the tabs above for more information.
Free next-day delivery - UK Mainland only
Fast Worldwide Shipping
If you require any assistance or would like to ask any questions, please contact us

Engine Information
Engine Codes	DNWA DAZA
Engine Size	2480cc
Engine Type	5 Cylinder Petrol 20V
OEM Part Number	07K107065AB 07K198401D 07K198401E
